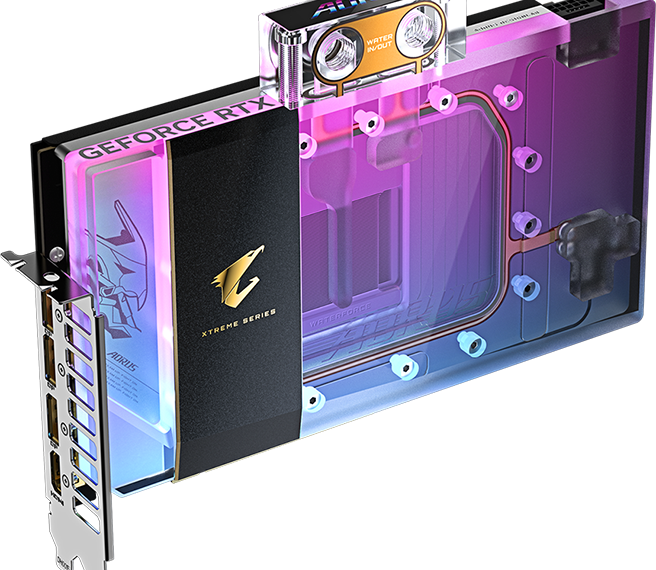

The AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G is the pinnacle of custom water-cooled GPU engineering. Built on NVIDIA’s Blackwell architecture and equipped with 32GB of high-speed GDDR7 memory, this card is purpose-built for enthusiasts who demand maximum performance in gaming, AI acceleration, and content creation. Unlike traditional cooling, the WATERFORCE water block system integrates seamlessly into custom liquid loops, offering silent operation, efficient heat transfer, and unmatched overclocking potential. With 21,760 CUDA cores and support for DLSS 4, it redefines what’s possible in next-gen computing.
Key Features
- NVIDIA Blackwell architecture with fifth-gen Tensor Cores and DLSS 4
- 32GB GDDR7 memory on a massive 512-bit bus running at 28 Gbps
- 21,760 CUDA cores with boost clock speeds up to 2655 MHz
- WATERFORCE water block cooling system with high-performance micro fins
- Patented leak detection system for added safety in custom loops
- All-covered copper base plate for maximum heat conductivity
- Server-grade thermal conductive gel and included premium thermal grease
- Fourth-gen Ray Tracing cores for advanced real-time rendering
- NVIDIA Reflex 2 with Frame Warp for ultra-responsive gameplay
- RGB Fusion lighting with 16.7M color customization
- Protective metal back plate and Ultra Durable PCB design
- Backed by a 4-year warranty (online registration required)
Specifications – AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G
| Specification | Details |
|---|---|
| Graphics Processing | GeForce RTX™ 5090 |
| Architecture | NVIDIA Blackwell |
| Core Clock | 2655 MHz (Reference: 2407 MHz) |
| CUDA® Cores | 21,760 |
| Memory Clock | 28 Gbps |
| Memory Size | 32 GB |
| Memory Type | GDDR7 |
| Memory Bus | 512-bit |
| Card Bus | PCI-E 5.0 |
| Max Resolution | 7680 x 4320 |
| Multi-View Support | 4 Displays |
| Card Size | L=235mm, W=172mm, H=29mm |
| PCB Form | ATX |
| DirectX / OpenGL | DirectX 12 API / OpenGL 4.6 |
| Recommended PSU | 1000W |
| Power Connector | 16-pin x1 |
| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Cooling System | WATERFORCE water block, high-performance microchannel |
| Leak Detection | Built-in patented leak detection circuit |
| Accessories | Quick guide, warranty registration, 12V-2×6 to 4x PCIe 8-pin adapter, AORUS stickers, metal badge, installation guide, thermal grease |
| Notes | Use only non-corrosive coolant |
Conclusion
The AORUS GeForce RTX 5090 XTREME WATERFORCE WB 32G represents the ultimate GPU for custom liquid cooling builds. With cutting-edge performance, extreme durability, and patented safety features, it’s engineered for gamers, overclockers, and professionals who refuse to compromise. The combination of 32GB GDDR7 memory, Blackwell architecture, and WATERFORCE WB cooling ensures not only raw power but also efficient thermal management and silent operation. For those building next-level custom PCs, this GPU is more than hardware—it’s a statement of extreme performance.
